Full neoCore capabilities
- All protocols, all software, all connectivity.
- neoDisplay is neoCore with a screen. Not a simplified version.
Hardware

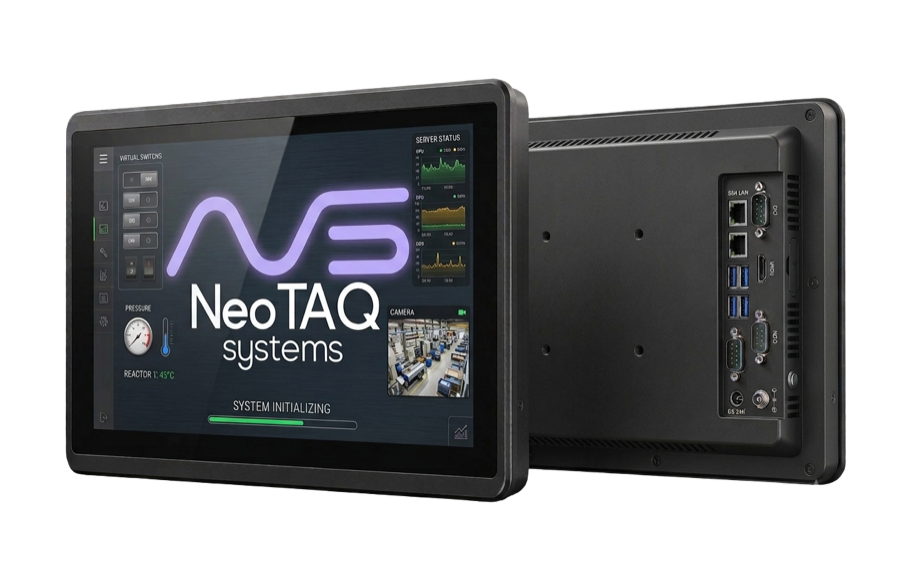

neoDisplay: edge hardware with integrated display
The full neoCore platform. A 15.6" industrial touchscreen built in.
neoDisplay is the full NeoTAQ edge platform with a 15.6" industrial touchscreen built in. Panel-mount, fanless, rated to -20°C. Live site data at the asset.
Live site data at the asset across Asia, GCC and Africa — no laptop, no separate screen.
See how neoDisplay fits on Energy, Telecom, Industry sites — explore the solution pages for sector-specific deployments.
100 MW+solar capacity already monitored on neoSphere
Core capabilities
Live data at the asset
- Operators see what they need without leaving the floor.
- Status, metrics and alarms displayed on the integrated screen.
No network login required onsite
- Teams access live site data directly on the unit.
- No browser, no credentials, no network dependency for local viewing.
Technical snapshot
| Display | 15.6" IPS touchscreen, 1920 × 1080, 16:9 |
|---|---|
| Touch | Capacitive multi-touch (10-point), G+G glass, 35,000,000 touch cycles |
| CPU | Intel Core i7 / i5 / i3 (Alder Lake-U) |
| RAM | Up to 64 GB DDR4 3200 (2× SO-DIMM) |
| Storage | M.2 NVMe SSD (size configurable) |
| Ethernet | 2 × Gigabit Ethernet (RJ45) |
| USB | 4 × USB 3.0 + 1 × USB 2.0 (internal) |
| Serial / COM | 2 × RS-232/485 (COM1/COM2), expandable to 4× |
| Cellular | 4G/5G via Mini-PCIe (SIM slot included) |
| Wi-Fi | Wi-Fi + Bluetooth via M.2 (optional) |
| Power input | DC 9–36V wide-range input |
| Power protection | Short-circuit, over-voltage, over-current and reverse polarity protection |
| Operating temp | -20°C to +60°C |
| Storage temp | -25°C to +70°C |
| Operating humidity | 10–90% RH, non-condensing |
| Dimensions | 380 × 240 × 65 mm |
| Panel cutout | 376 × 236 mm (R10) |
| Mounting | Panel mount and VESA 100×100 mm |
| Weight | ~4.5 kg |
Who it's for
- Control rooms and plant floors that need live status at the asset.
- Sites where operators should not depend on a laptop or login to see status.
- Teams standardising on neoCore hardware who want an integrated display option.
The neoDisplay advantage
- All protocols supported by neoCore: identical connectivity.
- 15.6" integrated touchscreen shows live status and metrics at the asset.
- Runs the complete NeoTAQ software suite: neoLog, neoSync, neoES.
- No separate screen, no laptop, no network login required on site.
- OTA software updates: capabilities grow without hardware replacement.
- Same neoSphere cloud connection as all NeoTAQ hardware.
Get the neoDisplay product brief
Full technical specifications available on request, sent straight to your inbox.
neoDisplay: questions buyers ask
See NeoTAQ run on sites like yours and get answers mapped to your setup.
What is an industrial edge display?
neoDisplay is the full NeoTAQ edge platform with a built-in 15.6" touchscreen — live site data at the asset without a separate laptop or monitor.
What environments does neoDisplay support?
Panel-mount, fanless, rated to -20°C — suitable for plant floors, control rooms and remote energy sites across Asia, GCC and Africa.
See neoDisplay against your own sites
Tell us what you run. We will show you how this product fits your existing assets and metrics.
